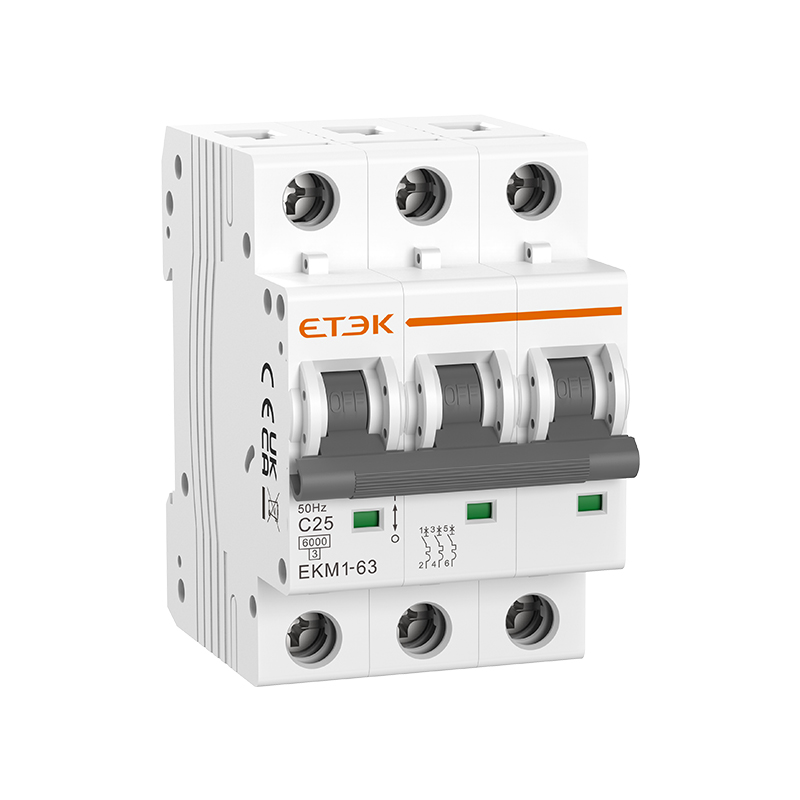

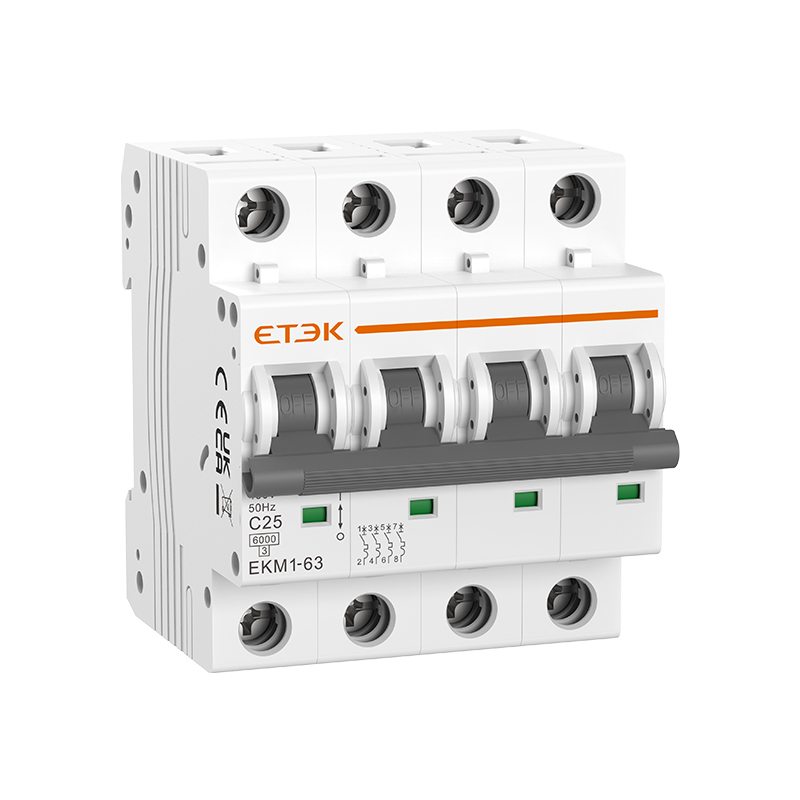

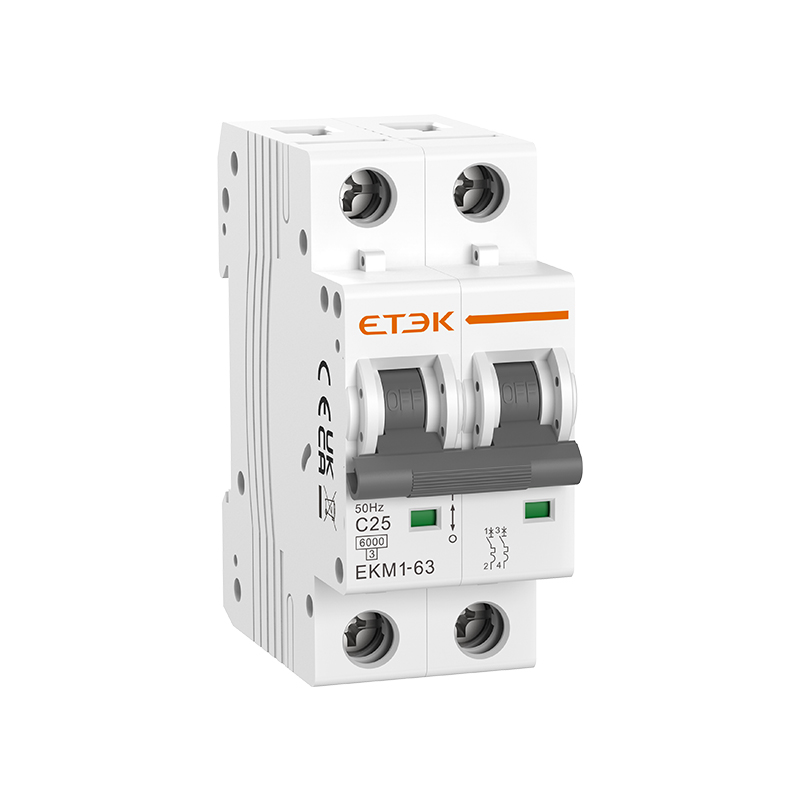

EKM2-63 6kA Disyuntor en miniatura Interruptor de aire MCB
Preguntar
EKM1-63 MCB tiene una vida útil mucho más larga gracias al mecanismo operativo de almacenamiento de energía; Envolvente y partes funcionales fabricadas con plásticos importados con propiedades ignífugas, resistentes al calor y a prueba de impulsos; Mayor capacidad de limitación de corriente que garantiza una gama rentable de productos.
Características eléctricas |
|
| Corriente nominal | 1,2,3,4,5,6,8,10,13,16,20,25,32,40,50,63A |
| polacos | 1P, 1P+N, 2P, 3P, 3P+N, 4P |
| Tensión nominal Ue | 240/415V |
| Tensión de aislamiento Ui | 500V |
| Frecuencia nominal | 50/60Hz |
| Capacidad de ruptura nominal | 6,000A |
| Clase de limitación de energía | 3 |
| Tensión soportada de impulso nominal (1,5/50) Uimp | 4000 V |
| Tensión de prueba dieléctrica en ind. frecuencia durante 1 minuto | 2kV |
| Grado de contaminación | 2 |
| Característica de liberación termomagnética | B, C, D |
Características mecánicas |
|
| Vida eléctrica | 8.000 ciclos |
| Vida mecánica | 20.000 ciclos |
| Indicador de posición de contacto | Sí |
| Grado de protección | IP20 |
| Temperatura de referencia para el fraguado de elementos térmicos | 30℃ |
| Temperatura ambiente (con promedio diario≤35℃) | -5℃~+40℃ |
| Temperatura de almacenamiento | -25℃~+70℃ |

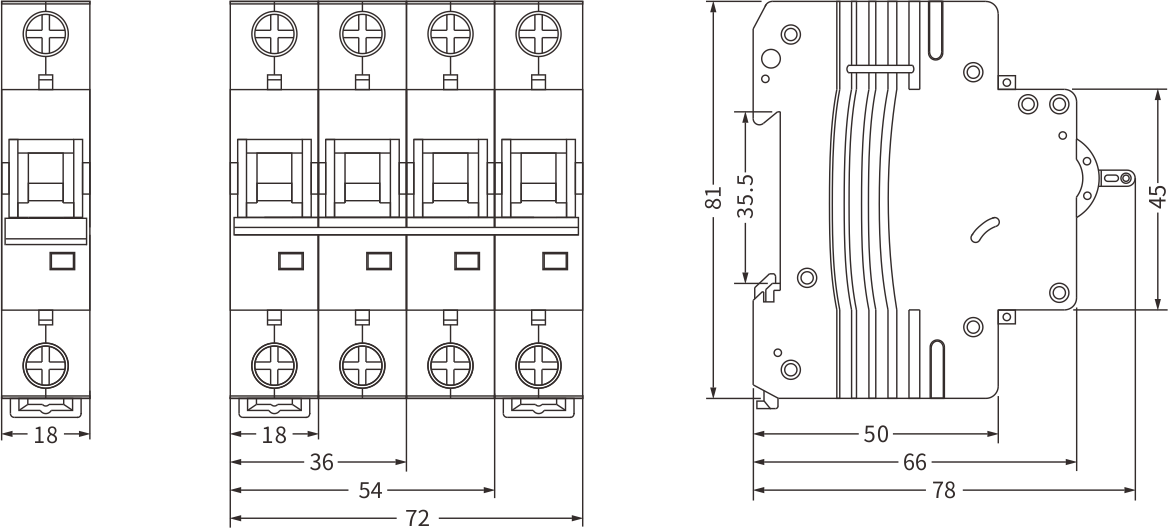

Instalación |
|
| Tipo de conexión de terminal | Cable/barra colectora tipo clavija/barra colectora tipo U |
| Tamaño de terminal superior/inferior para cable | 25 mm2 18-3 AWG |
| Tamaño de terminal superior/inferior para barra colectora | 25 mm2 18-3 AWG |
| Par de apriete | 2,5 Nm 22 pulgadas-libras |
| Montaje | Sobre carril DIN EN 60715 (35mm) mediante dispositivo de clip rápido |
| Conexión | Fuente de alimentación en ambas direcciones |
Combinación con accesorios |
|
| Contacto auxiliar | EKM1-OF |
| Contacto de alarma | EKM1-FB |
| Liberación de derivación | EKM1-MX |
| Liberación de sobre/bajo voltaje | EKM1-MV+MN |
| Disyuntor EKM1-63 6KA | ||||
| polacos | Corriente nominal (A) | Curva B | Curva C | Curva D |
| 1P | 1A | EKM1-63-1B01 | EKM1-63-1C01 | EKM1-63-1D01 |
| 2A | EKM1-63-1B02 | EKM1-63-1C02 | EKM1-63-1D02 | |
| 3A | EKM1-63-1B03 | EKM1-63-1C03 | EKM1-63-1D03 | |
| 4A | EKM1-63-1B04 | EKM1-63-1C04 | EKM1-63-1D04 | |
| 5A | EKM1-63-1B05 | EKM1-63-1C05 | EKM1-63-1D05 | |
| 6A | EKM1-63-1B06 | EKM1-63-1C06 | EKM1-63-1D06 | |
| 8A | EKM1-63-1B08 | EKM1-63-1C08 | EKM1-63-1D08 | |
| 10 A | EKM1-63-1B10 | EKM1-63-1C10 | EKM1-63-1D10 | |
| 13A | EKM1-63-1B13 | EKM1-63-1C13 | EKM1-63-1D13 | |
| 16A | EKM1-63-1B16 | EKM1-63-1C16 | EKM1-63-1D16 | |
| 20A | EKM1-63-1B20 | EKM1-63-1C20 | EKM1-63-1D20 | |
| 25A | EKM1-63-1B25 | EKM1-63-1C25 | EKM1-63-1D25 | |
| 32A | EKM1-63-1B32 | EKM1-63-1C32 | EKM1-63-1D32 | |
| 40A | EKM1-63-1B40 | EKM1-63-1C40 | EKM1-63-1D40 | |
| 50A | EKM1-63-1B50 | EKM1-63-1C50 | EKM1-63-1D50 | |
| 63A | EKM1-63-1B63 | EKM1-63-1C63 | EKM1-63-1D63 | |
| 2P | 1A | EKM1-63-2B01 | EKM1-63-2C01 | EKM1-63-2D01 |
| 2A | EKM1-63-2B02 | EKM1-63-2C02 | EKM1-63-2D02 | |
| 3A | EKM1-63-2B03 | EKM1-63-2C03 | EKM1-63-2D03 | |
| 4A | EKM1-63-2B04 | EKM1-63-2C04 | EKM1-63-2D04 | |
| 5A | EKM1-63-2B05 | EKM1-63-2C05 | EKM1-63-2D05 | |
| 6A | EKM1-63-2B06 | EKM1-63-2C06 | EKM1-63-2D06 | |
| 8A | EKM1-63-2B08 | EKM1-63-2C08 | EKM1-63-2D08 | |
| 10 A | EKM1-63-2B10 | EKM1-63-2C10 | EKM1-63-2D10 | |
| 13A | EKM1-63-2B13 | EKM1-63-2C13 | EKM1-63-2D13 | |
| 16A | EKM1-63-2B16 | EKM1-63-2C16 | EKM1-63-2D16 | |
| 20A | EKM1-63-2B20 | EKM1-63-2C20 | EKM1-63-2D20 | |
| 25A | EKM1-63-2B25 | EKM1-63-2C25 | EKM1-63-2D25 | |
| 32A | EKM1-63-2B32 | EKM1-63-2C32 | EKM1-63-2D32 | |
| 40A | EKM1-63-2B40 | EKM1-63-2C40 | EKM1-63-2D40 | |
| 50A | EKM1-63-2B50 | EKM1-63-2C50 | EKM1-63-2D50 | |
| 63A | EKM1-63-2B63 | EKM1-63-2C63 | EKM1-63-2D63 | |
| 3P | 1A | EKM1-63-3B01 | EKM1-63-3C01 | EKM1-63-3D01 |
| 2A | EKM1-63-3B02 | EKM1-63-3C02 | EKM1-63-3D02 | |
| 3A | EKM1-63-3B03 | EKM1-63-3C03 | EKM1-63-3D03 | |
| 4A | EKM1-63-3B04 | EKM1-63-3C04 | EKM1-63-3D04 | |
| 5A | EKM1-63-3B05 | EKM1-63-3C05 | EKM1-63-3D05 | |
| 6A | EKM1-63-3B06 | EKM1-63-3C06 | EKM1-63-3D06 | |
| 8A | EKM1-63-3B08 | EKM1-63-3C08 | EKM1-63-3D08 | |
| 10 A | EKM1-63-3B10 | EKM1-63-3C10 | EKM1-63-3D10 | |
| 13A | EKM1-63-3B13 | EKM1-63-3C13 | EKM1-63-3D13 | |
| 16A | EKM1-63-3B16 | EKM1-63-3C16 | EKM1-63-3D16 | |
| 20A | EKM1-63-3B20 | EKM1-63-3C20 | EKM1-63-3D20 | |
| 25A | EKM1-63-3B25 | EKM1-63-3C25 | EKM1-63-3D25 | |
| 32A | EKM1-63-3B32 | EKM1-63-3C32 | EKM1-63-3D32 | |
| 40A | EKM1-63-3B40 | EKM1-63-3C40 | EKM1-63-3D40 | |
| 50A | EKM1-63-3B50 | EKM1-63-3C50 | EKM1-63-3D50 | |
| 63A | EKM1-63-3B63 | EKM1-63-3C63 | EKM1-63-3D63 | |
| 4P | 1A | EKM1-63-4B01 | EKM1-63-4C01 | EKM1-63-4D01 |
| 2A | EKM1-63-4B02 | EKM1-63-4C02 | EKM1-63-4D02 | |
| 3A | EKM1-63-4B03 | EKM1-63-4C03 | EKM1-63-4D03 | |
| 4A | EKM1-63-4B04 | EKM1-63-4C04 | EKM1-63-4D04 | |
| 5A | EKM1-63-4B05 | EKM1-63-4C05 | EKM1-63-4D05 | |
| 6A | EKM1-63-4B06 | EKM1-63-4C06 | EKM1-63-4D06 | |
| 8A | EKM1-63-4B08 | EKM1-63-4C08 | EKM1-63-4D08 | |
| 10 A | EKM1-63-4B10 | EKM1-63-4C10 | EKM1-63-4D10 | |
| 13A | EKM1-63-4B13 | EKM1-63-4C13 | EKM1-63-4D13 | |
| 16A | EKM1-63-4B16 | EKM1-63-4C16 | EKM1-63-4D16 | |
| 20A | EKM1-63-4B20 | EKM1-63-4C20 | EKM1-63-4D20 | |
| 25A | EKM1-63-4B25 | EKM1-63-4C25 | EKM1-63-4D25 | |
| 32A | EKM1-63-4B32 | EKM1-63-4C32 | EKM1-63-4D32 | |
| 40A | EKM1-63-4B40 | EKM1-63-4C40 | EKM1-63-4D40 | |
| 50A | EKM1-63-4B50 | EKM1-63-4C50 | EKM1-63-4D50 | |
| 63A | EKM1-63-4B63 | EKM1-63-4C63 | EKM1-63-4D63 | |
| 1P+N | 1A | EKM1-63-1NB01 | EKM1-63-1NC01 | EKM1-63-1ND01 |
| 2A | EKM1-63-1NB02 | EKM1-63-1NC02 | EKM1-63-1ND02 | |
| 3A | EKM1-63-1NB03 | EKM1-63-1NC03 | EKM1-63-1ND03 | |
| 4A | EKM1-63-1NB04 | EKM1-63-1NC04 | EKM1-63-1ND04 | |
| 5A | EKM1-63-1NB05 | EKM1-63-1NC05 | EKM1-63-1ND05 | |
| 6A | EKM1-63-1NB06 | EKM1-63-1NC06 | EKM1-63-1ND06 | |
| 8A | EKM1-63-1NB08 | EKM1-63-1NC08 | EKM1-63-1ND08 | |
| 10 A | EKM1-63-1NB10 | EKM1-63-1NC10 | EKM1-63-1ND10 | |
| 13A | EKM1-63-1NB13 | EKM1-63-1NC13 | EKM1-63-1ND13 | |
| 16A | EKM1-63-1NB16 | EKM1-63-1NC16 | EKM1-63-1ND16 | |
| 20A | EKM1-63-1NB20 | EKM1-63-1NC20 | EKM1-63-1ND20 | |
| 25A | EKM1-63-1NB25 | EKM1-63-1NC25 | EKM1-63-1ND25 | |
| 32A | EKM1-63-1NB32 | EKM1-63-1NC32 | EKM1-63-1ND32 | |
| 40A | EKM1-63-1NB40 | EKM1-63-1NC40 | EKM1-63-1ND40 | |
| 50A | EKM1-63-1NB50 | EKM1-63-1NC50 | EKM1-63-1ND50 | |
| 63A | EKM1-63-1NB63 | EKM1-63-1NC63 | EKM1-63-1ND63 | |
| 3P+N | 1A | EKM1-63-3NB01 | EKM1-63-3NC01 | EKM1-63-3ND01 |
| 2A | EKM1-63-3NB02 | EKM1-63-3NC02 | EKM1-63-3ND02 | |
| 3A | EKM1-63-3NB03 | EKM1-63-3NC03 | EKM1-63-3ND03 | |
| 4A | EKM1-63-3NB04 | EKM1-63-3NC04 | EKM1-63-3ND04 | |
| 5A | EKM1-63-3NB05 | EKM1-63-3NC05 | EKM1-63-3ND05 | |
| 6A | EKM1-63-3NB06 | EKM1-63-3NC06 | EKM1-63-3ND06 | |
| 8A | EKM1-63-3NB08 | EKM1-63-3NC08 | EKM1-63-3ND08 | |
| 10 A | EKM1-63-3NB10 | EKM1-63-3NC10 | EKM1-63-3ND10 | |
| 13A | EKM1-63-3NB13 | EKM1-63-3NC13 | EKM1-63-3ND13 | |
| 16A | EKM1-63-3NB16 | EKM1-63-3NC16 | EKM1-63-3ND16 | |
| 20A | EKM1-63-3NB20 | EKM1-63-3NC20 | EKM1-63-3ND20 | |
| 25A | EKM1-63-3NB25 | EKM1-63-3NC25 | EKM1-63-3ND25 | |
| 32A | EKM1-63-3NB32 | EKM1-63-3NC32 | EKM1-63-3ND32 | |
| 40A | EKM1-63-3NB40 | EKM1-63-3NC40 | EKM1-63-3ND40 | |
| 50A | EKM1-63-3NB50 | EKM1-63-3NC50 | EKM1-63-3ND50 | |
| 63A | EKM1-63-3NB63 | EKM1-63-3NC63 | EKM1-63-3ND63 | |
