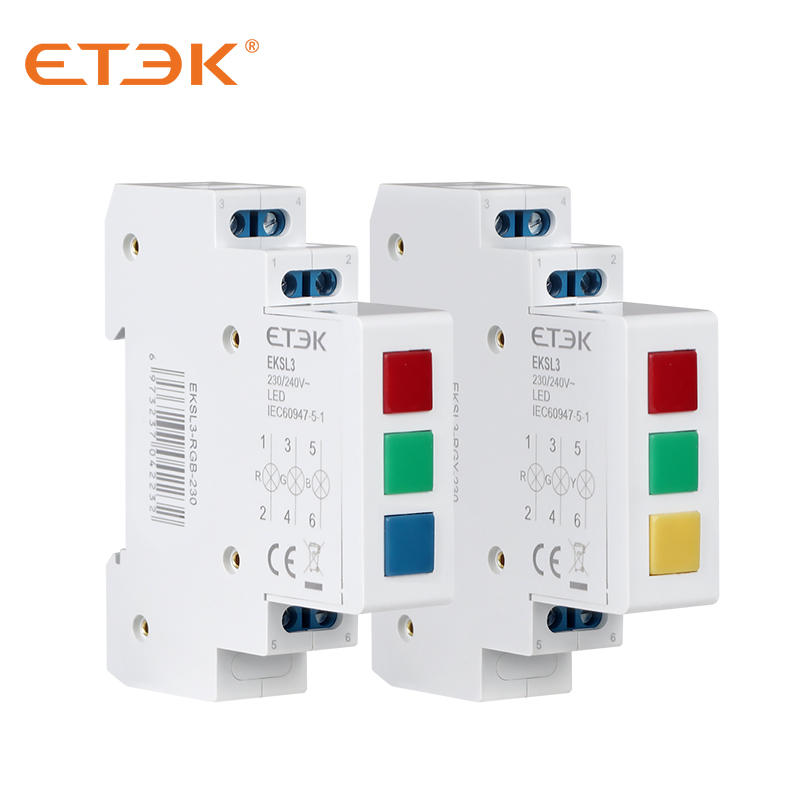

La lámpara de señalización modular es apta para circuitos con una tensión nominal de 230 V~ y una frecuencia de 50/60 Hz para indicación visual y señalización.
Baja duración del servicio, mínimo consumo de energía, diseño compacto en tamaño modular, fácil instalación.
Datos técnicos | |
| Tensión nominal | 230 V CA, 100 V CA, 48 V CA/CC, 24 V CA/CC |
| Frecuencia nominal | 50/60 Hz |
| Color | EKSL1 Rojo, verde, amarillo |
| EKSL3 Rojo/Verde/Amarillo, Rojo/Verde/Azul | |
| Terminal de conexión | Terminal de pilar con abrazadera |
| Capacidad de conexión | Conductor rígido de 1,5 mm |
| Instalación | En carril DIN simétrico de 35 mm |
| Montaje en panel | |
| Potencia máxima | 0,6 W |
| Iluminación | CONDUJO |
| Duración del servicio | 30.000 horas |

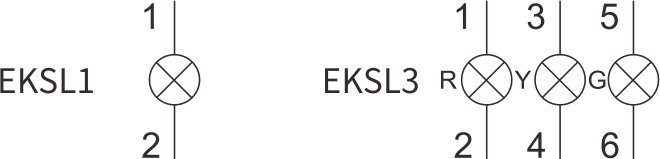

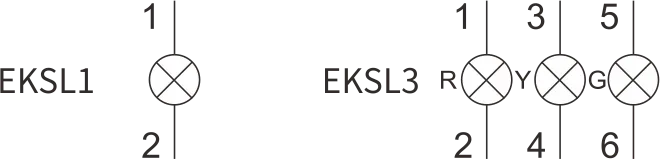

Diagrama del circuito
 |
| EKSL1 |
 |
| EKSL3 |
| Type | Reference No. | Specification |
| Single Color | EKSL1-R-24 | Modular Signal Lamp Red 24VAC/DC |
| EKSL1-G-24 | Modular Signal Lamp Green 24VAC/DC | |
| EKSL1-Y-24 | Modular Signal Lamp Yellow 24VAC/DC | |
| EKSL1-B-24 | Modular Signal Lamp Blue 24VAC/DC | |
| EKSL1-W-24 | Modular Signal Lamp White 24VAC/DC | |
| EKSL1-R-48 | Modular Signal Lamp Red 48VAC/DC | |
| EKSL1-G-48 | Modular Signal Lamp Green 48VAC/DC | |
| EKSL1-Y-48 | Modular Signal Lamp Yellow 48VAC/DC | |
| EKSL1-B-48 | Modular Signal Lamp Blue 48VAC/DC | |
| EKSL1-W-48 | Modular Signal Lamp White 48VAC/DC | |
| EKSL1-R-110 | Modular Signal Lamp Red 110VAC | |
| EKSL1-G-110 | Modular Signal Lamp Green 110VAC | |
| EKSL1-Y-110 | Modular Signal Lamp Yellow 110VAC | |
| EKSL1-B-110 | Modular Signal Lamp Blue 110VAC | |
| EKSL1-W-110 | Modular Signal Lamp White 110VAC | |
| EKSL1-R-230 | Modular Signal Lamp Red 230VAC | |
| EKSL1-G-230 | Modular Signal Lamp Green 230VAC | |
| EKSL1-Y-230 | Modular Signal Lamp Yellow 230VAC | |
| EKSL1-B-230 | Modular Signal Lamp Blue 230VAC | |
| EKSL1-W-230 | Modular Signal Lamp White 230VAC | |
|
Tri-color |
EKSL3-RGY-24 | Modular Signal Lamp Red/Green/Yellow 24VAC/DC |
| EKSL3-RGY-48 | Modular Signal Lamp Red/Green/Yellow 48VAC/DC | |
| EKSL3-RGY-110 | Modular Signal Lamp Red/Green/Yellow 110VAC | |
| EKSL3-RGY-230 | Modular Signal Lamp Red/Green/Yellow 230VAC | |
| EKSL3-RGB-24 | Modular Signal Lamp Red/Green/Blue 24VAC/DC | |
| EKSL3-RGB-48 | Modular Signal Lamp Red/Green/Blue 48VAC/DC | |
| EKSL3-RGB-110 | Modular Signal Lamp Red/Green/Blue 110VAC | |
| EKSL3-RGB-230 | Modular Signal Lamp Red/Green/Blue 230VAC | |
| EKSL3-RYB-24 | Modular Signal Lamp Red/Yellow/Blue 24VAC/DC | |
| EKSL3-RYB-48 | Modular Signal Lamp Red/Yellow/Blue 48VAC/DC | |
| EKSL3-RYB-110 | Modular Signal Lamp Red/Yellow/Blue 110VAC | |
| EKSL3-RYB-230 | Modular Signal Lamp Red/Yellow/Blue 230VAC |
