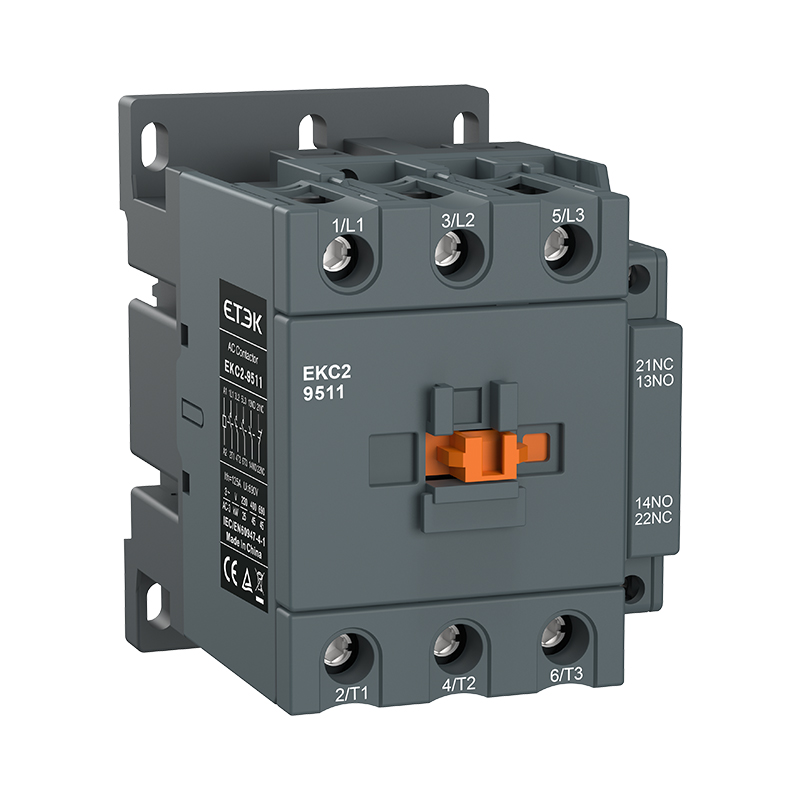

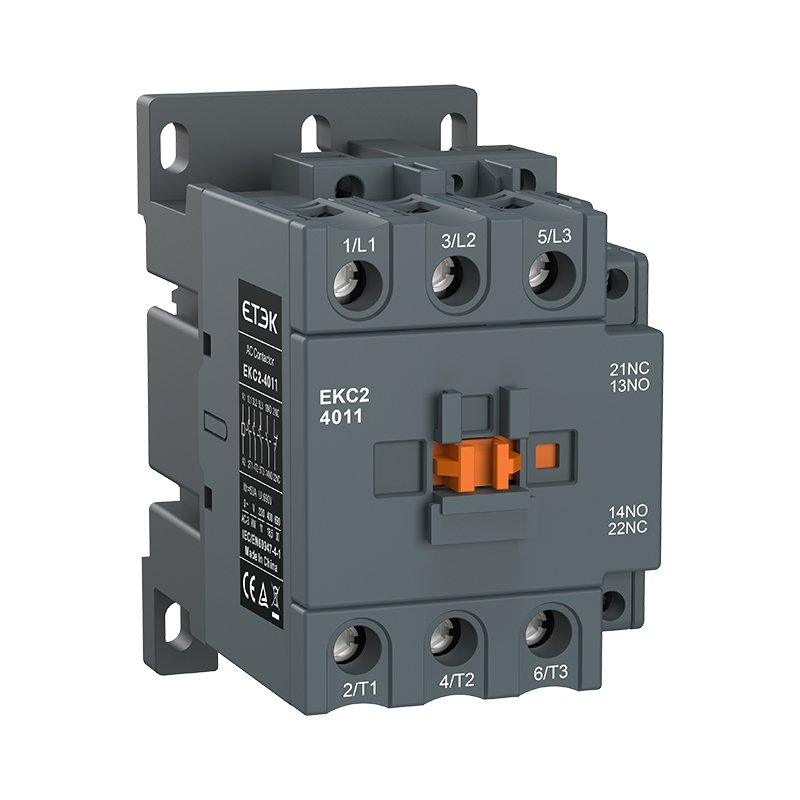

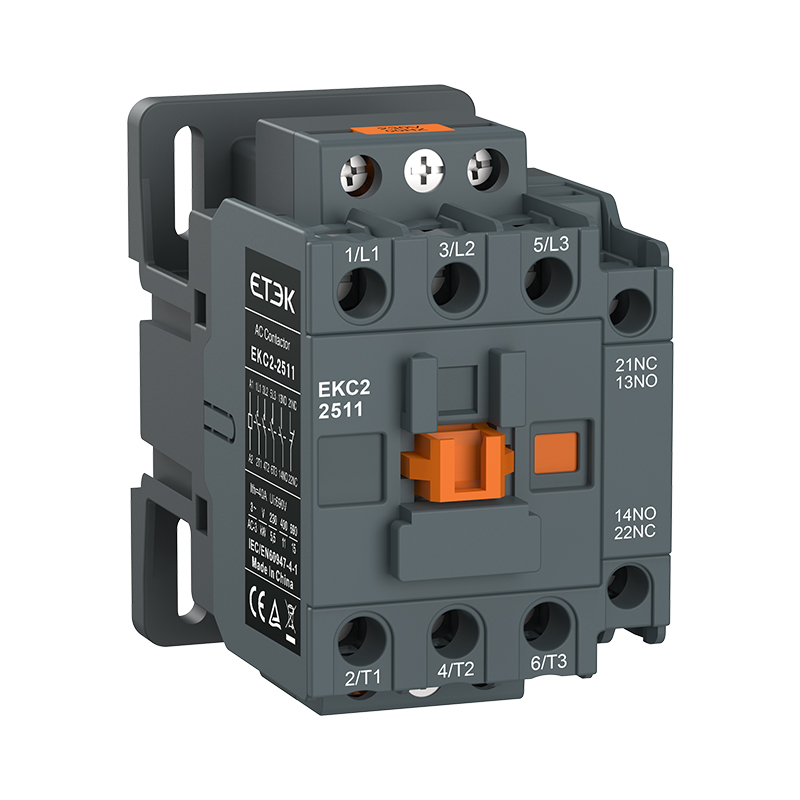

● Norma: IEC60947-1, IEC60947-4-1
● Corriente nominal: 9-95 A
● Tensión nominal de funcionamiento: 220V~690V
● Tensión nominal de aislamiento: 690 V
● Número de polos: 3P
● Contacto auxiliar: 1NA+1NC
● Método de instalación: Instalación sobre carril DIN o mediante tornillos.
El contactor de CA de la serie EKC2 presenta un diseño innovador y una estructura compacta. Se utiliza para el arranque y control frecuente de motores de CA, la conexión y desconexión de circuitos a larga distancia, y puede combinarse con relés de sobrecarga térmica adecuados para formar un arrancador electromagnético. Está equipado con un contacto auxiliar 1NO+1NC.
Cumplir con las normas: IEC 60947-1, IEC 60947-4-1.
| Solicitud | Circuitos de conexión y desconexión remota |
| Proteja el circuito contra sobrecargas al ensamblarlo con un relé de sobrecarga térmica. | |
| Arranque y control frecuentes del contactor de CA | |
| Valor eléctrico | CA 50/60 Hz, 690 V, hasta 95 A |
| Categoría de utilización | AC-3, AC-4 |
| Altitud | ≤2000 m |
| Temperatura ambiente | -5℃~+40℃ |
| Categoría de montaje | Ⅲ |
| Condiciones de montaje | La inclinación entre el plano de montaje y el plano vertical no debe exceder ±5°. |
| EK | do | 2 | - | 09 | 11 | - | 230V |
| Código de empresa | Contactor | Diseño No. | Tensión nominal de funcionamiento (380V/400V,AC3): | Número de contactos | Voltaje de la bobina: | ||
| 9A, 12A, 18A, 25A, 32A, 40A, 50A, 65A, 80A, 95A | 11:3 contactos principales NA+1 contacto auxiliar NA y 1 contacto auxiliar NC | 24V, 48V, 110V, 240V, 415V |
Número de modelo | EKC2-09 | EKC2-12 | EKC2-18 | EKC2-25 | EKC2-32 | EKC2-38 | |
| Polos | 3P | ||||||
Corriente de calefacción convencional nominal | Con(A) | 20 | 20 | 32 | 40 | 50 | 50 |
Tensión nominal Ui(V) | Ui(V) | 690 | |||||
Corriente nominal de funcionamiento Ue=380/415V | AC-3 Ie(A) | 9 | 12 | 18 | 25 | 32 | 38 |
AC-4 Ie(A) | 3.5 | 5 | 7.7 | 8.5 | 12 | 14 | |
Motor de jaula trifásico con control de potencia AC-3 | 220/240 V kW | 2.2 | 3 | 4 | 5.5 | 7.5 | 8.9 |
380/415 V kW | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | |
660/690 V kW | 5.5 | 7.5 | 10 | 15 | 18.5 | 18.5 | |
Vida útil eléctrica ( x10⁴ operaciones) | AC-3 | 110 | 110 | 110 | 110 | 90 | 90 |
AC-4 | 22 | ||||||
Vida útil mecánica ( x10⁴ operaciones) | 1200 | 1200 | 1200 | 1000 | 1000 | 1000 | |
Fusible compatible | Tamaño | RT16-00 | |||||
A | 20 | 20 | 32 | 40 | 50 | 50 | |
Contacto principal | 3NO | ||||||
| Contacto auxiliar incorporado | 1NO+1NC | ||||||
Número de modelo | EKC2-40 | EKC2-50 | EKC2-65 | EKC2-80 | EKC2-95 | |
| Polos | 3P | |||||
Corriente de calefacción convencional nominal | Con(A) | 60 | 80 | 80 | 100 | 125 |
Tensión nominal Ui(V) | Ui(V) | 690 | ||||
Corriente nominal de funcionamiento Ue=380/415V | AC-3 Ie(A) | 40 | 50 | 65 | 80 | 95 |
AC-4 Ie(A) | 18.5 | 24 | 28 | 37 | 44 | |
Motor de jaula trifásico con control de potencia AC-3 | 220/240 V kW | 11 | 15 | 18.5 | 22 | 25 |
380/415 V kW | 18.5 | 22 | 30 | 37 | 45 | |
660/690 V kW | 30 | 33 | 37 | 45 | 45 | |
Vida útil eléctrica ( x10⁴ operaciones) | AC-3 | 90 | 90 | 90 | 65 | 65 |
AC-4 | 17 | 11 | ||||
Vida útil mecánica ( x10⁴ operaciones) | 900 | 900 | 900 | 650 | 650 | |
Fusible compatible | Tamaño | RT16-00 | ||||
A | 63 | 80 | 80 | 100 | 125 | |
Contacto principal | 3NO | |||||
| Contacto auxiliar incorporado | 1NO+1NC | |||||
| EKC2-09~38 | ||||||||||
 | ||||||||||
| EKC2-25~32 | ||||||||||
 | ||||||||||
| EKC2-40~65 | ||||||||||
 | ||||||||||
| EKC2-80-95 | ||||||||||
 |

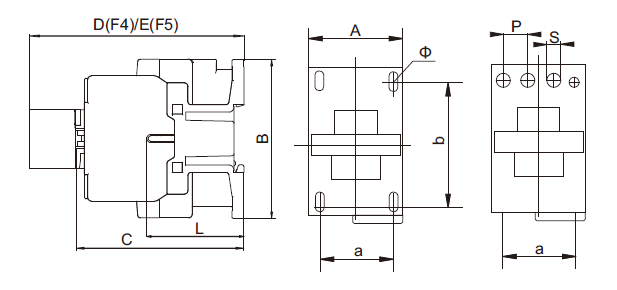

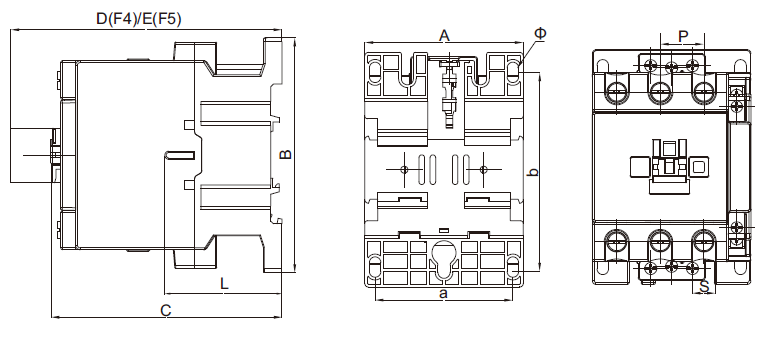

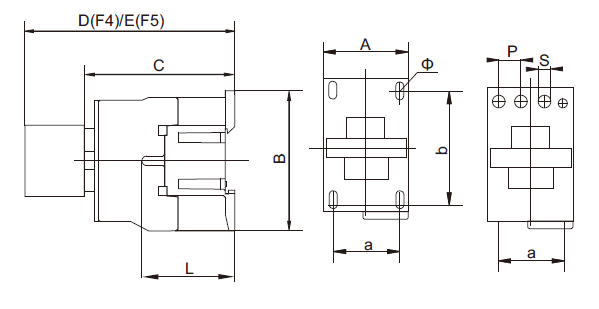

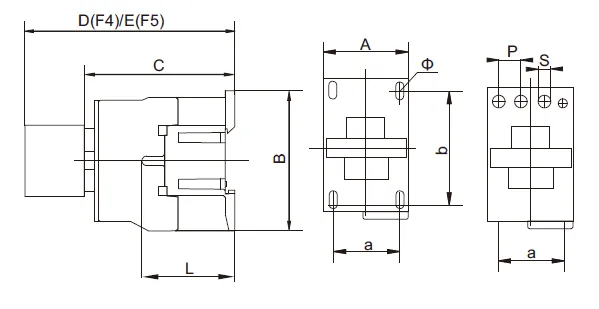

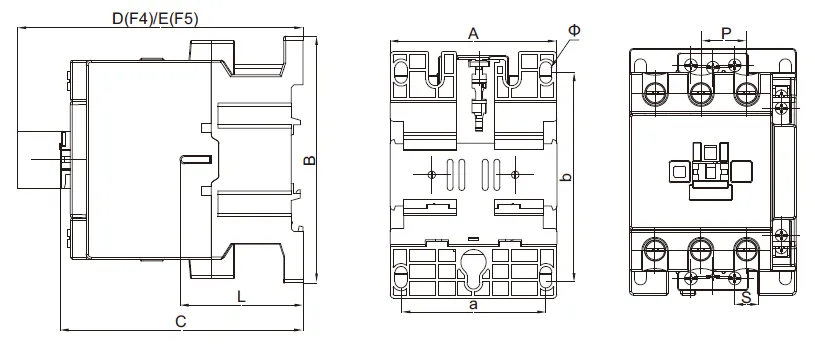

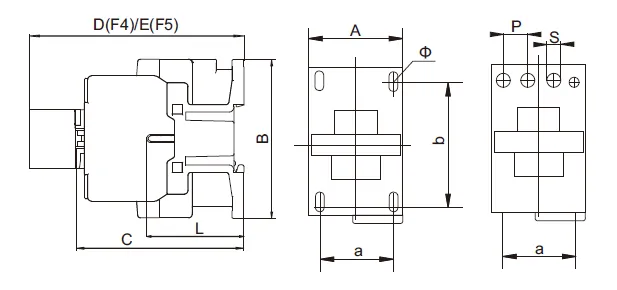

| Modelo | Amax | Bmax | Cmax | Dmax | Emax | y | b | Φ | L | PAG | S | ||
| EKC2-09~18 | 45 | 74.5 | 87 | 120 | 124 | 34,5 | 50/60 | 4.5 | 51 | 11 | 10.5 | ||
| EKC2-25,32 | 56 | 87 | 98.6 | 132 | 136 | 40 | 61.5 | 4.5 | 59.3 | 14.2 | 13 | ||
| EKC2-40_65 | 75 | 127 | 118 | 151.1 | 155 | 63,5 | 105 | 6 | 63.2 | 20 | 14 | ||
| EKC2-80~95 | 86 | 126,5 | 126,5 | 158,5 | 162,5 | 74.5 | 105 | 6 | 63.2 | 23.5 | 17.5 | ||
| Reference No. | Specification |
| EKC2-0911-24 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 24VAC |
| EKC2-0911-42 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 42VAC |
| EKC2-0911-48 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 48VAC |
| EKC2-0911-110 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 110VAC |
| EKC2-0911-220 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 220VAC |
| EKC2-0911-230 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 230VAC |
| EKC2-0911-240 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 240VAC |
| EKC2-0911-380 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 380VAC |
| EKC2-0911-415 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 415VAC |
| EKC2-1211-24 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 24VAC |
| EKC2-1211-42 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 42VAC |
| EKC2-1211-48 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 48VAC |
| EKC2-1211-110 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 110VAC |
| EKC2-1211-220 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 220VAC |
| EKC2-1211-230 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 230VAC |
| EKC2-1211-240 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 240VAC |
| EKC2-1211-380 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 380VAC |
| EKC2-1211-415 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 415VAC |
| EKC2-1811-24 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 24VAC |
| EKC2-1811-42 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 42VAC |
| EKC2-1811-48 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 48VAC |
| EKC2-1811-110 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 110VAC |
| EKC2-1811-220 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 220VAC |
| EKC2-1811-230 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 230VAC |
| EKC2-1811-240 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 240VAC |
| EKC2-1811-380 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 380VAC |
| EKC2-1811-415 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 415VAC |
| EKC2-2511-24 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 24VAC |
| EKC2-2511-42 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 42VAC |
| EKC2-2511-48 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 48VAC |
| EKC2-2511-110 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 110VAC |
| EKC2-2511-220 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 220VAC |
| EKC2-2511-230 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 230VAC |
| EKC2-2511-240 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 240VAC |
| EKC2-2511-380 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 380VAC |
| EKC2-2511-415 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 415VAC |
| EKC2-3211-24 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 24VAC |
| EKC2-3211-42 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 42VAC |
| EKC2-3211-48 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 48VAC |
| EKC2-3211-110 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 110VAC |
| EKC2-3211-220 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 220VAC |
| EKC2-3211-230 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 230VAC |
| EKC2-3211-240 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 240VAC |
| EKC2-3211-380 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 380VAC |
| EKC2-3211-415 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 415VAC |
| EKC2-3811-24 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 24VAC |
| EKC2-3811-42 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 42VAC |
| EKC2-3811-48 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 48VAC |
| EKC2-3811-110 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 110VAC |
| EKC2-3811-220 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 220VAC |
| EKC2-3811-230 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 230VAC |
| EKC2-3811-240 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 240VAC |
| EKC2-3811-380 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 380VAC |
| EKC2-3811-415 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 415VAC |
| EKC2-4011-24 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 24VAC |
| EKC2-4011-42 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 42VAC |
| EKC2-4011-48 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 48VAC |
| EKC2-4011-110 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 110VAC |
| EKC2-4011-220 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 220VAC |
| EKC2-4011-230 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 230VAC |
| EKC2-4011-240 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 240VAC |
| EKC2-4011-380 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 380VAC |
| EKC2-4011-415 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 415VAC |
| EKC2-5011-24 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 24VAC |
| EKC2-5011-42 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 42VAC |
| EKC2-5011-48 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 48VAC |
| EKC2-5011-110 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 110VAC |
| EKC2-5011-220 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 220VAC |
| EKC2-5011-230 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 230VAC |
| EKC2-5011-240 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 240VAC |
| EKC2-5011-380 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 380VAC |
| EKC2-5011-415 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 415VAC |
| EKC2-6511-24 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 24VAC |
| EKC2-6511-42 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 42VAC |
| EKC2-6511-48 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 48VAC |
| EKC2-6511-110 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 110VAC |
| EKC2-6511-220 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 220VAC |
| EKC2-6511-230 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 230VAC |
| EKC2-6511-240 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 240VAC |
| EKC2-6511-380 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 380VAC |
| EKC2-6511-415 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 415VAC |
| EKC2-8011-24 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 24VAC |
| EKC2-8011-42 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 42VAC |
| EKC2-8011-48 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 48VAC |
| EKC2-8011-110 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 110VAC |
| EKC2-8011-220 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 220VAC |
| EKC2-8011-230 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 230VAC |
| EKC2-8011-240 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 240VAC |
| EKC2-8011-380 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 380VAC |
| EKC2-8011-415 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 415VAC |
| EKC2-9511-24 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 24VAC |
| EKC2-9511-42 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 42VAC |
| EKC2-9511-48 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 48VAC |
| EKC2-9511-110 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 110VAC |
| EKC2-9511-220 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 220VAC |
| EKC2-9511-230 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 230VAC |
| EKC2-9511-240 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 240VAC |
| EKC2-9511-380 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 380VAC |
| EKC2-9511-415 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 415VAC |
