Descripción

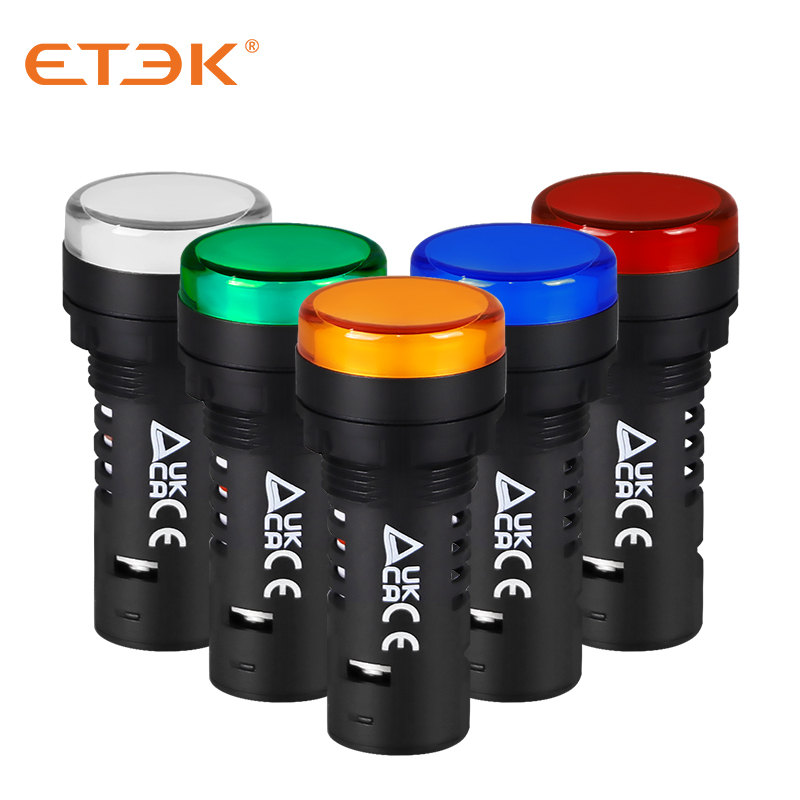

La luz indicadora experimental de la serie EKLD22 utiliza un chip emisor de luz LED de color sólido de alto brillo como fuente de luz, con larga vida útil, bajo consumo de energía, tamaño pequeño, peso ligero, alto brillo, buena fiabilidad, apariencia atractiva y fabricación exquisita, adecuada para energía eléctrica, telecomunicaciones, máquinas herramienta, en las líneas de barcos, textiles, impresión, maquinaria minera y otros equipos, donde se utiliza como señal de indicación, señal de advertencia, señal de accidente y otras señales de indicación.
1. Tamaño del orificio: φ22,5 mm; se pueden obtener diámetros de φ25 mm y φ30 mm seleccionando el anillo reductor;
2. Controlar diferentes formas de emisión de luz a través de diferentes terminales para indicar claramente diferentes estados de funcionamiento;
3. Las piezas están fabricadas con materiales importados, que son duraderos y resistentes al desgaste;
4. Cableado integrado tipo tornillo, más seguro y práctico.
| Temperatura de funcionamiento: -5℃~+40℃ | Tensión de resistencia a la frecuencia industrial: 2500 V, mín. | ||||||||
| Humedad de funcionamiento: 45%~85% | Grado de instalación: III | ||||||||
| Grado de contaminación: 3 | Grado de protección: IP65 | ||||||||
| Tensión nominal de funcionamiento | (Ue) | CA/CC CA/CC | AC/DC | AC/DC | AC/DC | AC/DC | AC/DC | C.A. | |
| 6,3 V | 12V | 12V | 24V | 48V | 110 V | 220V | 380V | ||
| Corriente nominal de funcionamiento | (Ie)≤80mA ≤20mA | ||||||||
| Color base | Verde Amarillo Rojo Azul Blanco | ||||||||
| Vida útil eléctrica (h) | ≥3000 | ||||||||
| Brillo | ≥60 | ||||||||
| Reference No. | Specification |

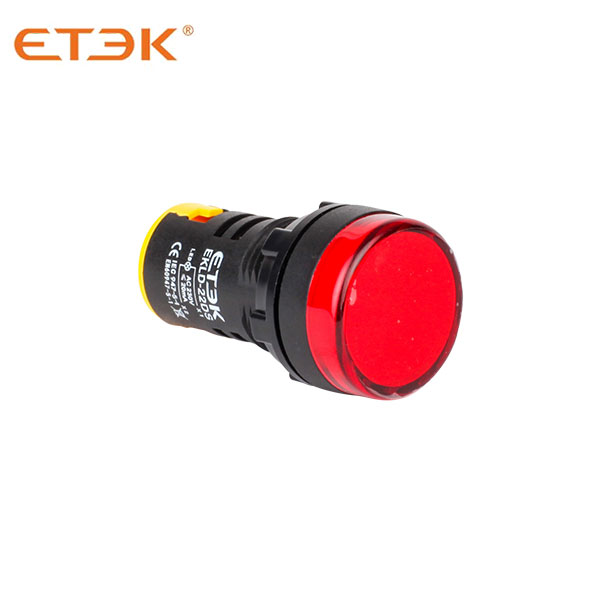

| EKLD-22DS-R-12 | LED Indicator General type 22mm Red 12VAC/DC |
| EKLD-22DS-R-24 | LED Indicator General type 22mm Red 24VAC/DC |
| EKLD-22DS-R-48 | LED Indicator General type 22mm Red 48VAC/DC |
| EKLD-22DS-R-110 | LED Indicator General type 22mm Red 110VAC/DC |
| EKLD-22DS-R-220 | LED Indicator General type 22mm Red 220VAC |
| EKLD-22DS-R-220D | LED Indicator General type 22mm Red 220VDC |
| EKLD-22DS-R-230 | LED Indicator General type 22mm Red 230VAC |
| EKLD-22DS-R-380 | LED Indicator General type 22mm Red 380VAC |

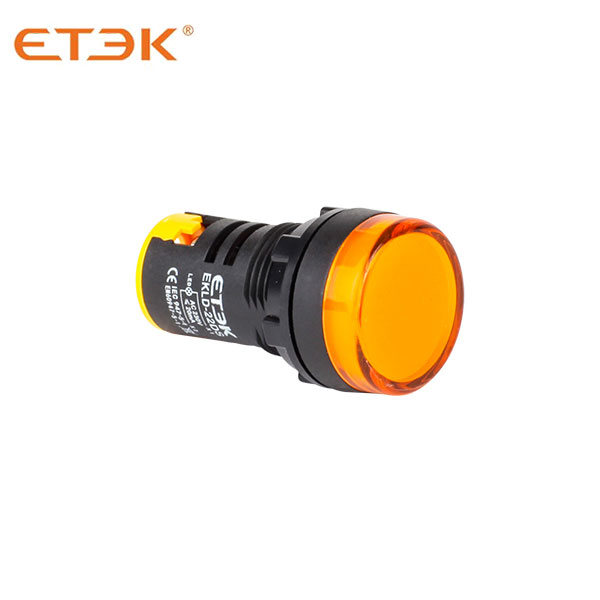

| EKLD-22DS-Y-12 | LED Indicator General type 22mm Yellow 12VAC/DC |
| EKLD-22DS-Y-24 | LED Indicator General type 22mm Yellow 24VAC/DC |
| EKLD-22DS-Y-48 | LED Indicator General type 22mm Yellow 48VAC/DC |
| EKLD-22DS-Y-110 | LED Indicator General type 22mm Yellow 110VAC/DC |
| EKLD-22DS-Y-220 | LED Indicator General type 22mm Yellow 220VAC |
| EKLD-22DS-Y-220D | LED Indicator General type 22mm Yellow 220VDC |
| EKLD-22DS-Y-230 | LED Indicator General type 22mm Yellow 230VAC |
| EKLD-22DS-Y-380 | LED Indicator General type 22mm Yellow 380VAC |
| EKLD-22DS-G-12 | LED Indicator General type 22mm Green 12VAC/DC |
| EKLD-22DS-G-24 | LED Indicator General type 22mm Green 24VAC/DC |
| EKLD-22DS-G-48 | LED Indicator General type 22mm Green 48VAC/DC |
| EKLD-22DS-G-110 | LED Indicator General type 22mm Green 110VAC/DC |
| EKLD-22DS-G-220 | LED Indicator General type 22mm Green 220VAC |
| EKLD-22DS-G-220D | LED Indicator General type 22mm Green 220VDC |
| EKLD-22DS-G-230 | LED Indicator General type 22mm Green 230VAC |
| EKLD-22DS-G-380 | LED Indicator General type 22mm Green 380VAC |

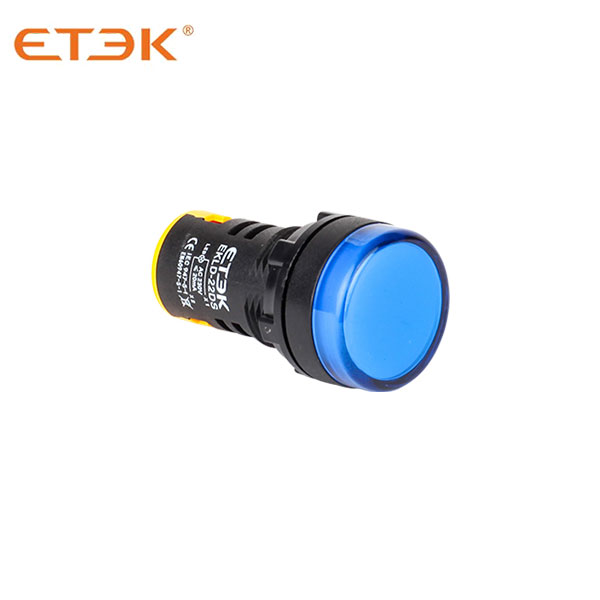

| EKLD-22DS-B-12 | LED Indicator General type 22mm Blue 12VAC/DC |
| EKLD-22DS-B-24 | LED Indicator General type 22mm Blue 24VAC/DC |
| EKLD-22DS-B-48 | LED Indicator General type 22mm Blue 48VAC/DC |
| EKLD-22DS-B-110 | LED Indicator General type 22mm Blue 110VAC/DC |
| EKLD-22DS-B-220 | LED Indicator General type 22mm Blue 220VAC |
| EKLD-22DS-B-220D | LED Indicator General type 22mm Blue 220VDC |
| EKLD-22DS-B-230 | LED Indicator General type 22mm Blue 230VAC |
| EKLD-22DS-B-380 | LED Indicator General type 22mm Blue 380VAC |

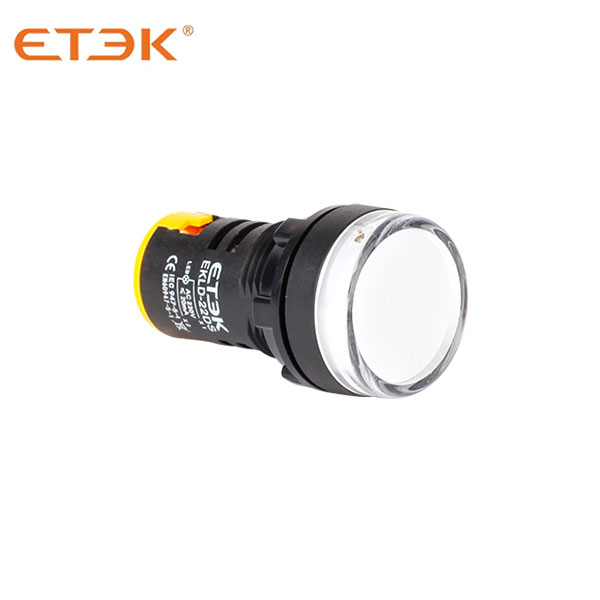

| EKLD-22DS-W-12 | LED Indicator General type 22mm White 12VAC/DC |
| EKLD-22DS-W-24 | LED Indicator General type 22mm White 24VAC/DC |
| EKLD-22DS-W-48 | LED Indicator General type 22mm White 48VAC/DC |
| EKLD-22DS-W-110 | LED Indicator General type 22mm White 110VAC/DC |
| EKLD-22DS-W-220 | LED Indicator General type 22mm White 220VAC |
| EKLD-22DS-W-220D | LED Indicator General type 22mm White 220VDC |
| EKLD-22DS-W-230 | LED Indicator General type 22mm White 230VAC |
| EKLD-22DS-W-380 | LED Indicator General type 22mm White 380VAC |
| EKLD-22DKS-R-12 | LED Indicator Anti-interference type 22mm Red 12VAC/DC |
| EKLD-22DKS-R-24 | LED Indicator Anti-interference type 22mm Red 24VAC/DC |
| EKLD-22DKS-R-48 | LED Indicator Anti-interference type 22mm Red 48VAC/DC |
| EKLD-22DKS-R-110 | LED Indicator Anti-interference type 22mm Red 110VAC/DC |
| EKLD-22DKS-R-220 | LED Indicator Anti-interference type 22mm Red 220VAC |
| EKLD-22DKS-R-220D | LED Indicator Anti-interference type 22mm Red 220VDC |
| EKLD-22DKS-R-230 | LED Indicator Anti-interference type 22mm Red 230VAC |
| EKLD-22DKS-R-380 | LED Indicator Anti-interference type 22mm Red 380VAC |
| EKLD-22DKS-Y-12 | LED Indicator Anti-interference type 22mm Yellow 12VAC/DC |
| EKLD-22DKS-Y-24 | LED Indicator Anti-interference type 22mm Yellow 24VAC/DC |
| EKLD-22DKS-Y-48 | LED Indicator Anti-interference type 22mm Yellow 48VAC/DC |
| EKLD-22DKS-Y-110 | LED Indicator Anti-interference type 22mm Yellow 110VAC/DC |
| EKLD-22DKS-Y-220 | LED Indicator Anti-interference type 22mm Yellow 220VAC |
| EKLD-22DKS-Y-220D | LED Indicator Anti-interference type 22mm Yellow 220VDC |
| EKLD-22DKS-Y-230 | LED Indicator Anti-interference type 22mm Yellow 230VAC |
| EKLD-22DKS-Y-380 | LED Indicator Anti-interference type 22mm Yellow 380VAC |
| EKLD-22DKS-G-12 | LED Indicator Anti-interference type 22mm Green 12VAC/DC |
| EKLD-22DKS-G-24 | LED Indicator Anti-interference type 22mm Green 24VAC/DC |
| EKLD-22DKS-G-48 | LED Indicator Anti-interference type 22mm Green 48VAC/DC |
| EKLD-22DKS-G-110 | LED Indicator Anti-interference type 22mm Green 110VAC/DC |
| EKLD-22DKS-G-220 | LED Indicator Anti-interference type 22mm Green 220VAC |
| EKLD-22DKS-G-220D | LED Indicator Anti-interference type 22mm Green 220VDC |
| EKLD-22DKS-G-230 | LED Indicator Anti-interference type 22mm Green 230VAC |
| EKLD-22DKS-G-380 | LED Indicator Anti-interference type 22mm Green 380VAC |
| EKLD-22DKS-B-12 | LED Indicator Anti-interference type 22mm Blue 12VAC/DC |
| EKLD-22DKS-B-24 | LED Indicator Anti-interference type 22mm Blue 24VAC/DC |
| EKLD-22DKS-B-48 | LED Indicator Anti-interference type 22mm Blue 48VAC/DC |
| EKLD-22DKS-B-110 | LED Indicator Anti-interference type 22mm Blue 110VAC/DC |
| EKLD-22DKS-B-220 | LED Indicator Anti-interference type 22mm Blue 220VAC |
| EKLD-22DKS-B-220D | LED Indicator Anti-interference type 22mm Blue 220VDC |
| EKLD-22DKS-B-230 | LED Indicator Anti-interference type 22mm Blue 230VAC |
| EKLD-22DKS-B-380 | LED Indicator Anti-interference type 22mm Blue 380VAC |
| EKLD-22DKS-W-12 | LED Indicator Anti-interference type 22mm White 12VAC/DC |
| EKLD-22DKS-W-24 | LED Indicator Anti-interference type 22mm White 24VAC/DC |
| EKLD-22DKS-W-48 | LED Indicator Anti-interference type 22mm White 48VAC/DC |
| EKLD-22DKS-W-110 | LED Indicator Anti-interference type 22mm White 110VAC/DC |
| EKLD-22DKS-W-220 | LED Indicator Anti-interference type 22mm White 220VAC |
| EKLD-22DKS-W-220D | LED Indicator Anti-interference type 22mm White 220VDC |
| EKLD-22DKS-W-230 | LED Indicator Anti-interference type 22mm White 230VAC |
| EKLD-22DKS-W-380 | LED Indicator Anti-interference type 22mm White 380VAC |
| EKLD-22DFS-R-12 | LED Indicator Discharge type 22mm Red 12VAC/DC |
| EKLD-22DFS-R-24 | LED Indicator Discharge type 22mm Red 24VAC/DC |
| EKLD-22DFS-R-48 | LED Indicator Discharge type 22mm Red 48VAC/DC |
| EKLD-22DFS-R-110 | LED Indicator Discharge type 22mm Red 110VAC/DC |
| EKLD-22DFS-R-220 | LED Indicator Discharge type 22mm Red 220VAC |
| EKLD-22DFS-R-220D | LED Indicator Discharge type 22mm Red 220VDC |
| EKLD-22DFS-R-230 | LED Indicator Discharge type 22mm Red 230VAC |
| EKLD-22DFS-R-380 | LED Indicator Discharge type 22mm Red 380VAC |
| EKLD-22DFS-Y-12 | LED Indicator Discharge type 22mm Yellow 12VAC/DC |
| EKLD-22DFS-Y-24 | LED Indicator Discharge type 22mm Yellow 24VAC/DC |
| EKLD-22DFS-Y-48 | LED Indicator Discharge type 22mm Yellow 48VAC/DC |
| EKLD-22DFS-Y-110 | LED Indicator Discharge type 22mm Yellow 110VAC/DC |
| EKLD-22DFS-Y-220 | LED Indicator Discharge type 22mm Yellow 220VAC |
| EKLD-22DFS-Y-220D | LED Indicator Discharge type 22mm Yellow 220VDC |
| EKLD-22DFS-Y-230 | LED Indicator Discharge type 22mm Yellow 230VAC |
| EKLD-22DFS-Y-380 | LED Indicator Discharge type 22mm Yellow 380VAC |
| EKLD-22DFS-G-12 | LED Indicator Discharge type 22mm Green 12VAC/DC |
| EKLD-22DFS-G-24 | LED Indicator Discharge type 22mm Green 24VAC/DC |
| EKLD-22DFS-G-48 | LED Indicator Discharge type 22mm Green 48VAC/DC |
| EKLD-22DFS-G-110 | LED Indicator Discharge type 22mm Green 110VAC/DC |
| EKLD-22DFS-G-220 | LED Indicator Discharge type 22mm Green 220VAC |
| EKLD-22DFS-G-220D | LED Indicator Discharge type 22mm Green 220VDC |
| EKLD-22DFS-G-230 | LED Indicator Discharge type 22mm Green 230VAC |
| EKLD-22DFS-G-380 | LED Indicator Discharge type 22mm Green 380VAC |
| EKLD-22DFS-B-12 | LED Indicator Discharge type 22mm Blue 12VAC/DC |
| EKLD-22DFS-B-24 | LED Indicator Discharge type 22mm Blue 24VAC/DC |
| EKLD-22DFS-B-48 | LED Indicator Discharge type 22mm Blue 48VAC/DC |
| EKLD-22DFS-B-110 | LED Indicator Discharge type 22mm Blue 110VAC/DC |
| EKLD-22DFS-B-220 | LED Indicator Discharge type 22mm Blue 220VAC |
| EKLD-22DFS-B-220D | LED Indicator Discharge type 22mm Blue 220VDC |
| EKLD-22DFS-B-230 | LED Indicator Discharge type 22mm Blue 230VAC |
| EKLD-22DFS-B-380 | LED Indicator Discharge type 22mm Blue 380VAC |
| EKLD-22DFS-W-12 | LED Indicator Discharge type 22mm White 12VAC/DC |
| EKLD-22DFS-W-24 | LED Indicator Discharge type 22mm White 24VAC/DC |
| EKLD-22DFS-W-48 | LED Indicator Discharge type 22mm White 48VAC/DC |
| EKLD-22DFS-W-110 | LED Indicator Discharge type 22mm White 110VAC/DC |
| EKLD-22DFS-W-220 | LED Indicator Discharge type 22mm White 220VAC |
| EKLD-22DFS-W-220D | LED Indicator Discharge type 22mm White 220VDC |
| EKLD-22DFS-W-230 | LED Indicator Discharge type 22mm White 230VAC |
| EKLD-22DFS-W-380 | LED Indicator Discharge type 22mm White 380VAC |
| EKLD-22DRG-12 | LED Indicator Double Colour type 22mm Red/Green 12VAC/DC |
| EKLD-22DRG-24 | LED Indicator Double Colour type 22mm Red/Green 24VAC/DC |
| EKLD-22DRG-48 | LED Indicator Double Colour type 22mm Red/Green 48VAC/DC |
| EKLD-22DRG-110 | LED Indicator Double Colour type 22mm Red/Green 110VAC/DC |
| EKLD-22DRG-220 | LED Indicator Double Colour type 22mm Red/Green 220VAC |
| EKLD-22DRG-220D | LED Indicator Double Colour type 22mm Red/Green 220VDC |
| EKLD-22DRG-230 | LED Indicator Double Colour type 22mm Red/Green 230VAC |
| EKLD-22DRG-380 | LED Indicator Double Colour type 22mm Red/Green 380VAC |
| EKLD-22DRB-12 | LED Indicator Double Colour type 22mm Red/Blue 12VAC/DC |
| EKLD-22DRB-24 | LED Indicator Double Colour type 22mm Red/Blue 24VAC/DC |
| EKLD-22DRB-48 | LED Indicator Double Colour type 22mm Red/Blue 48VAC/DC |
| EKLD-22DRB-110 | LED Indicator Double Colour type 22mm Red/Blue 110VAC/DC |
| EKLD-22DRB-220 | LED Indicator Double Colour type 22mm Red/Blue 220VAC |
| EKLD-22DRB-220D | LED Indicator Double Colour type 22mm Red/Blue 220VDC |
| EKLD-22DRB-230 | LED Indicator Double Colour type 22mm Red/Blue 230VAC |
| EKLD-22DRB-380 | LED Indicator Double Colour type 22mm Red/Blue 380VAC |
| EKLD-22MSD-R-12 | LED Indicator Flash Buzzer type 22mm Red 12VAC/DC |
| EKLD-22MSD-R-24 | LED Indicator Flash Buzzer type 22mm Red 24VAC/DC |
| EKLD-22MSD-R-48 | LED Indicator Flash Buzzer type 22mm Red 48VAC/DC |
| EKLD-22MSD-R-110 | LED Indicator Flash Buzzer type 22mm Red 110VAC/DC |
| EKLD-22MSD-R-220 | LED Indicator Flash Buzzer type 22mm Red 220VAC |
| EKLD-22MSD-R-220D | LED Indicator Flash Buzzer type 22mm Red 220VDC |
| EKLD-22MSD-R-230 | LED Indicator Flash Buzzer type 22mm Red 230VAC |
| EKLD-22MSD-R-380 | LED Indicator Flash Buzzer type 22mm Red 380VAC |
| EKLD-22MFD-B-12 | LED Indicator Buzzer type 22mm Black 12VAC/DC |
| EKLD-22MFD-B-24 | LED Indicator Buzzer type 22mm Black 24VAC/DC |
| EKLD-22MFD-B-48 | LED Indicator Buzzer type 22mm Black 48VAC/DC |
| EKLD-22MFD-B-110 | LED Indicator Buzzer type 22mm Black 110VAC/DC |
| EKLD-22MFD-B-220 | LED Indicator Buzzer type 22mm Black 220VAC |
| EKLD-22MFD-B-220D | LED Indicator Buzzer type 22mm Black 220VDC |
| EKLD-22MFD-B-230 | LED Indicator Buzzer type 22mm Black 230VAC |
| EKLD-22MFD-B-380 | LED Indicator Buzzer type 22mm Black 380VAC |

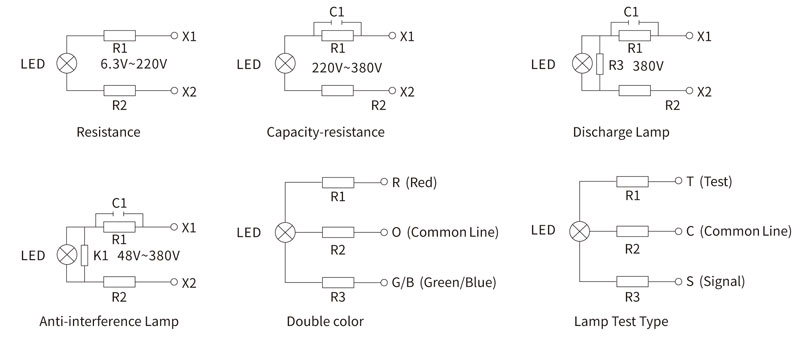

| EKLD-22DLT-R-12 | LED Indicator Lamp Test type 22mm Red 12VAC/DC |
| EKLD-22DLT-R-24 | LED Indicator Lamp Test type 22mm Red 24VAC/DC |
| EKLD-22DLT-R-48 | LED Indicator Lamp Test type 22mm Red 48VAC/DC |
| EKLD-22DLT-R-110 | LED Indicator Lamp Test type 22mm Red 110VAC/DC |
| EKLD-22DLT-R-220 | LED Indicator Lamp Test type 22mm Red 220VAC |
| EKLD-22DLT-R-220D | LED Indicator Lamp Test type 22mm Red 220VDC |
| EKLD-22DLT-R-230 | LED Indicator Lamp Test type 22mm Red 230VAC |
| EKLD-22DLT-R-380 | LED Indicator Lamp Test type 22mm Red 380VAC |
| EKLD-22DLT-Y-12 | LED Indicator Lamp Test type 22mm Yellow 12VAC/DC |
| EKLD-22DLT-Y-24 | LED Indicator Lamp Test type 22mm Yellow 24VAC/DC |
| EKLD-22DLT-Y-48 | LED Indicator Lamp Test type 22mm Yellow 48VAC/DC |
| EKLD-22DLT-Y-110 | LED Indicator Lamp Test type 22mm Yellow 110VAC/DC |
| EKLD-22DLT-Y-220 | LED Indicator Lamp Test type 22mm Yellow 220VAC |
| EKLD-22DLT-Y-220D | LED Indicator Lamp Test type 22mm Yellow 220VDC |
| EKLD-22DLT-Y-230 | LED Indicator Lamp Test type 22mm Yellow 230VAC |
| EKLD-22DLT-Y-380 | LED Indicator Lamp Test type 22mm Yellow 380VAC |
| EKLD-22DLT-G-12 | LED Indicator Lamp Test type 22mm Green 12VAC/DC |
| EKLD-22DLT-G-24 | LED Indicator Lamp Test type 22mm Green 24VAC/DC |
| EKLD-22DLT-G-48 | LED Indicator Lamp Test type 22mm Green 48VAC/DC |
| EKLD-22DLT-G-110 | LED Indicator Lamp Test type 22mm Green 110VAC/DC |
| EKLD-22DLT-G-220 | LED Indicator Lamp Test type 22mm Green 220VAC |
| EKLD-22DLT-G-220D | LED Indicator Lamp Test type 22mm Green 220VDC |
| EKLD-22DLT-G-230 | LED Indicator Lamp Test type 22mm Green 230VAC |
| EKLD-22DLT-G-380 | LED Indicator Lamp Test type 22mm Green 380VAC |
| EKLD-22DLT-B-12 | LED Indicator Lamp Test type 22mm Blue 12VAC/DC |
| EKLD-22DLT-B-24 | LED Indicator Lamp Test type 22mm Blue 24VAC/DC |
| EKLD-22DLT-B-48 | LED Indicator Lamp Test type 22mm Blue 48VAC/DC |
| EKLD-22DLT-B-110 | LED Indicator Lamp Test type 22mm Blue 110VAC/DC |
| EKLD-22DLT-B-220 | LED Indicator Lamp Test type 22mm Blue 220VAC |
| EKLD-22DLT-B-220D | LED Indicator Lamp Test type 22mm Blue 220VDC |
| EKLD-22DLT-B-230 | LED Indicator Lamp Test type 22mm Blue 230VAC |
| EKLD-22DLT-B-380 | LED Indicator Lamp Test type 22mm Blue 380VAC |
| EKLD-22DLT-W-12 | LED Indicator Lamp Test type 22mm White 12VAC/DC |
| EKLD-22DLT-W-24 | LED Indicator Lamp Test type 22mm White 24VAC/DC |
| EKLD-22DLT-W-48 | LED Indicator Lamp Test type 22mm White 48VAC/DC |
| EKLD-22DLT-W-110 | LED Indicator Lamp Test type 22mm White 110VAC/DC |
| EKLD-22DLT-W-220 | LED Indicator Lamp Test type 22mm White 220VAC |
| EKLD-22DLT-W-220D | LED Indicator Lamp Test type 22mm White 220VDC |
| EKLD-22DLT-W-230 | LED Indicator Lamp Test type 22mm White 230VAC |
| EKLD-22DLT-W-380 | LED Indicator Lamp Test type 22mm White 380VAC |
United States (English)
Russia (Pусский)
France (Français)
China (中文)
Spain (Español)
Germany (Deutsch)
Portugal (Português)
Slovakia (slovenský jazyk)
Australia (English)
New Zealand (English)
